Light Plant Engines



     Light Plant Engines used for direct lighting were equipped with either Bosch or Wico magnetos.  Those charging banks of storage batteries used the battery current for both starting and ignition.

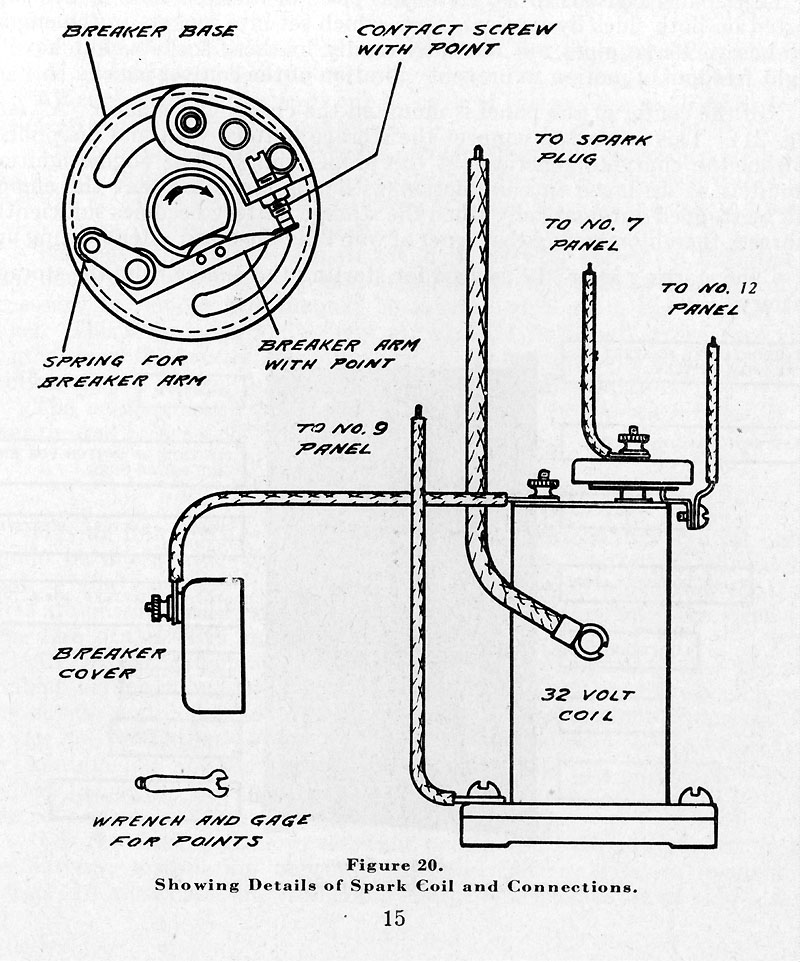

#5B Light Plant ignition wiring diagram

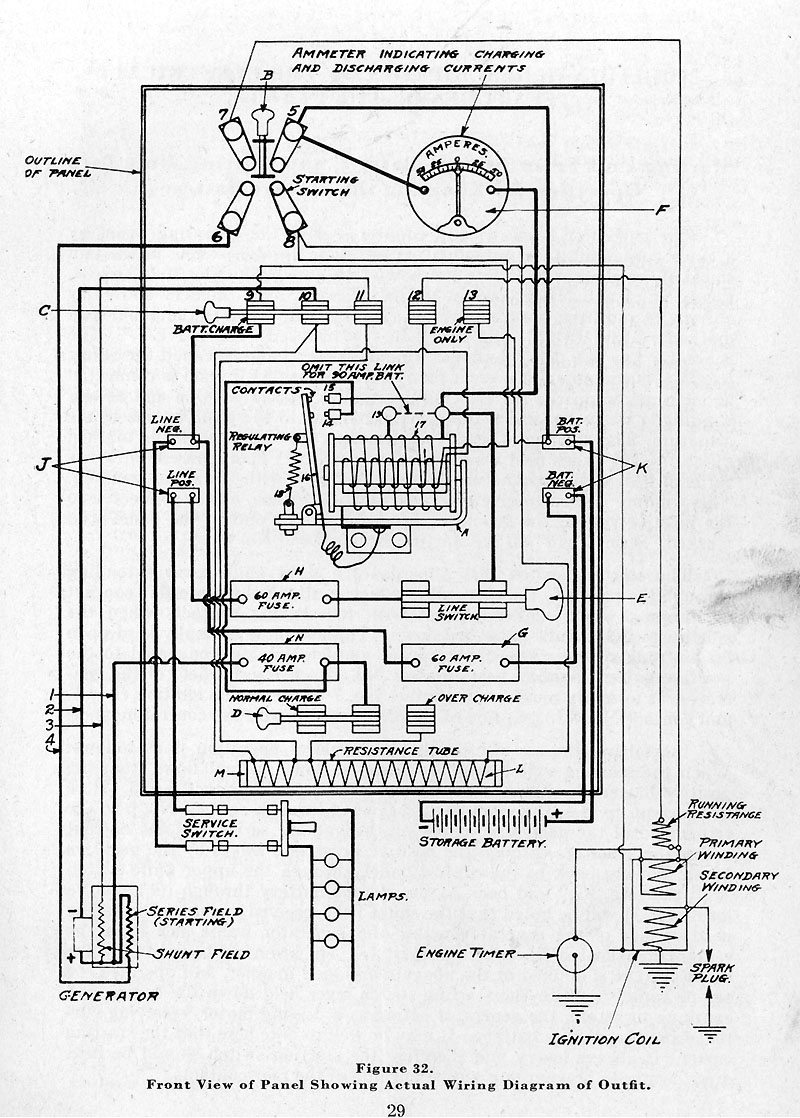

#15B Light Plant panel wiring diagram
